Amped AM60

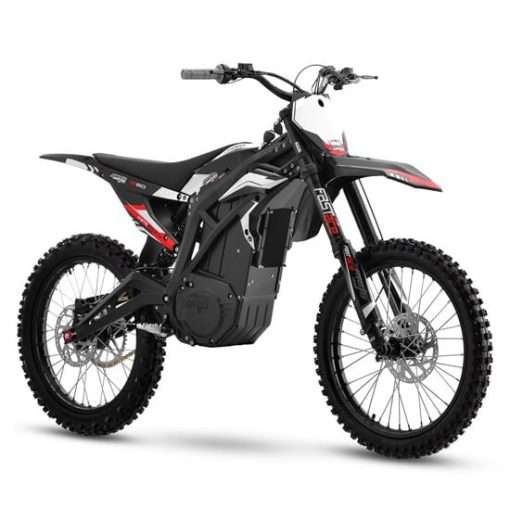

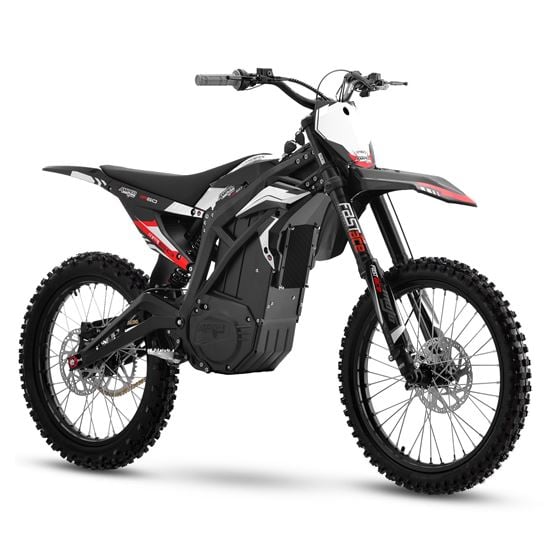

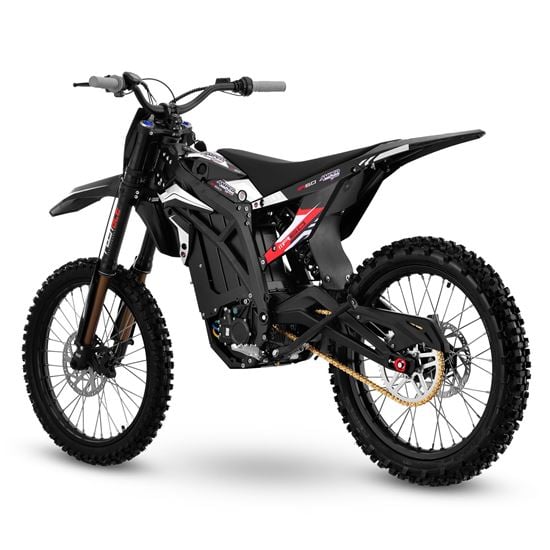

The Amped A60.

We are pleased to bring a new and exciting bike to the Amped Bikes range. The all new Amped A60!

The new A60 is fitted with a JYX Brushless Permanent Magnet Motor, which is capable of delivering 6kw of peak power with 280Nm of torque!

A market leading 60v 40AH Samsung battery pushes performance to the limit giving high output and fast charge time.

The A60 uses a forged alloy frame and is fitted with the well known and trusted FASTACE multi adjustment suspension front and rear. With 200mm travel front and 75mm rear the A60 can be pushed to the limits on all terrains.

Robust Inner Design

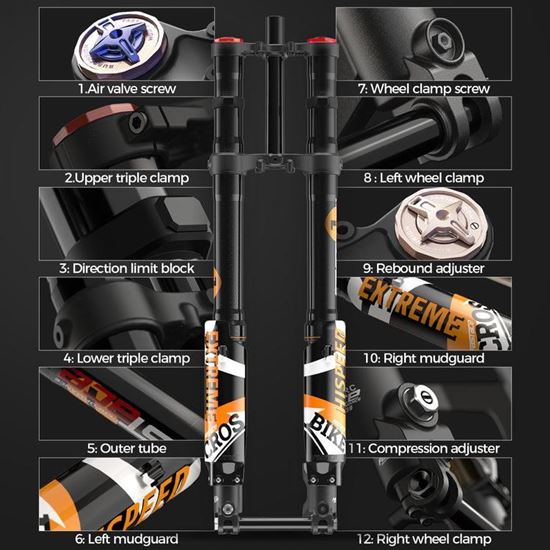

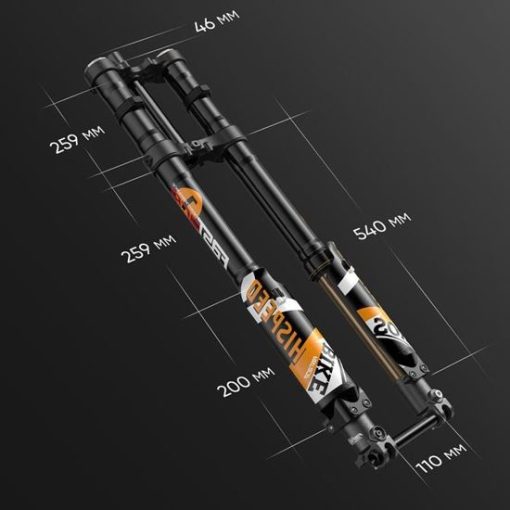

The FASTACE front fork is a lightweight spring damper, designed and manufactured for fast downhill bikes. It is made of high-strength and lightweight aluminum alloy, with inner and outer tubes, upper and lower plates, and left and right legs. The interior is designed with spring and oil pressure damping, ensuring stability and reliability

Hydraulic Damping System

The hydraulic damping system of the FASTACE front fork is inside the right tube, which suppresses vibration and impact caused by acceleration, deceleration, and road bumps. The internal damper uses wear-resistant, low freezing point, and high-quality shock absorber oil to ensure damping stability and reliability.

Alloy Steel Spring Design

The front suspension’s left tube features a high-strength alloy steel spring design, reducing weight and supporting the rider’s weight compared to conventional springs. This design meets the various needs of your daily riding.

More Durable

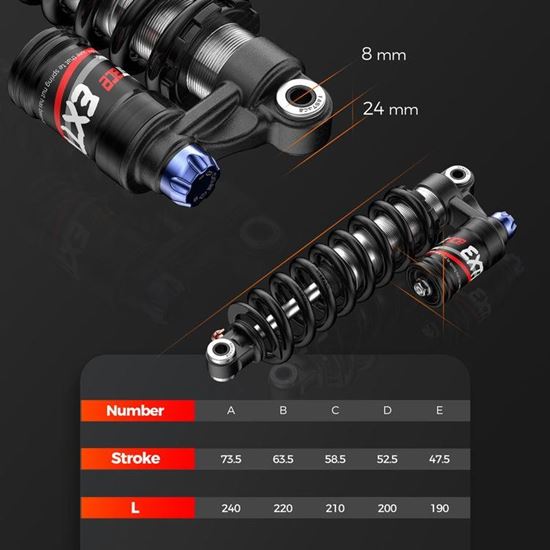

The aero-grade AL-7075 is used as the main body of the shock absorber to effectively prevent oxidation and improve strength. Strong enough to support all the difficult moves you want to do without the risk.

Multi-function

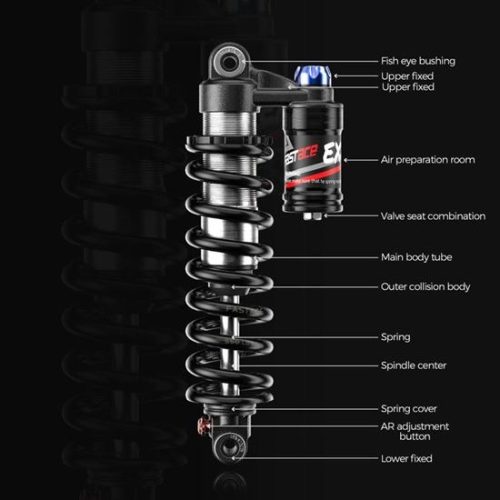

Rear suspensionequipped with rebound damping adjustment knob and compression adjustment knob, which can be adjusted according to individual riding habits. Spring hardness can be adjusted according to the rotating spring top tooth grain disk, down the spring effect becomes hard, up and soft. The gas in the cylinder can be inflated through the bottom valve.

**Please note, while every effort is made to ensure images are kept up to date, some models can change without prior notice. Images are for illustrative purposes but will give a fairly accurate idea of what the product will look like. **

Amped AM60 Specifications

Model

Amped A60

Motor

JYX Brushless DC Permanent Magnet Motor

Peak Power

6KW

Rated Power

3KW

Rear wheel Torque

280 N.m

Controller

Yuanqu FOC sine wave Controller

Battery

60V 40Ah ( Samsung 21700 Core), removeable

Battery Weight

12.7kg

Frame

Forged alloy

Max speed

47 mph (weight/terrain/speed dependent)

Charge Time

Xietong Charger 4H

Front wheel

Alloy 7series rim 1.4-19″ , Yuanxing Tyre 70/100-19″

Rear wheel

Alloy 7series rim 1.6-19″ , Yuanxing Tyre 80/100-19″

Front fork

FASTACE Up-side down front fork full adjustable, travel 200mm

Rear shock

FASTACE Adjustable shock absorber, travel 75mm

Brake disc

Front and Rear hydraulic disc brake 203mm

Handlebar

Aluminum Fat bar

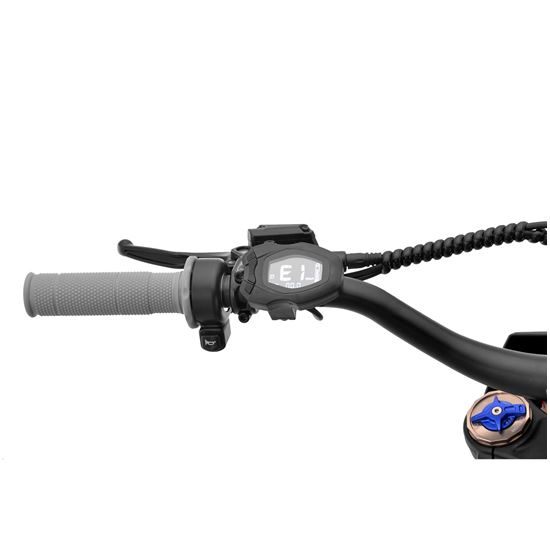

Speed meter

Digtal display P,S, M

Front fork/ wheel travel:

200mm;

Rear shock/wheel travel

78/200mm

Dimensions

1900 x 750 x 1100mm

Seat height

850±5mm ( the seat height is adjustable )

Wheel base

1285+5mm

Max Load

90kg

N.W.

65kg

Ground clearance

285mm
